Sliding Vise Guides

Lower Guide Rail

2010.01.12

Today I worked on making the sliding vise lower guide rail.  Back when I went to Frank’s shop and we used his jointer and planer, he used a table saw to rip the vise chop board to width.  There was a fairly narrow length left over, which I figured would be more than enough to make this triangular-section rail.

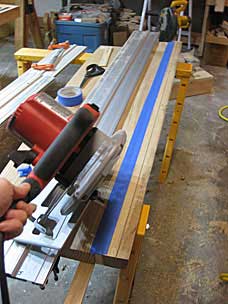

Because of the dust collection add-ons, my Hitachi circular saw is essentially a permanent 90° setup.  I needed to make a 45° rip, so I brought out the big Milwaukee.  I still used one of the Eurekazone guides as a straightedge, but without the sliding carriage of course.  It took me a while to figure out a way to set everything up to make this beveled rip in a secure and repeatable manner.  Finally I decided I had it worked out.

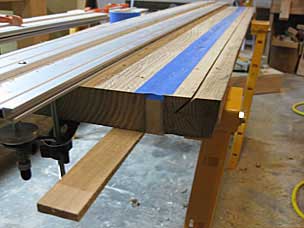

I started with a shallow pass, then kept going deeper.  Learning from previous experiences with the white oak, I pushed the saw through fairly quickly, and finally managed to rip without burning.

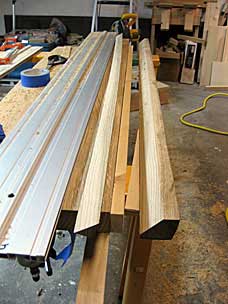

I beveled the narrow ends as well, and used the block plane with chamfer guide to make a small chamfer along the sharp peak, essentially creating a narrow flat top.

2010.01.13

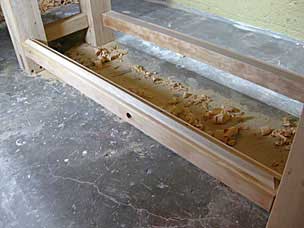

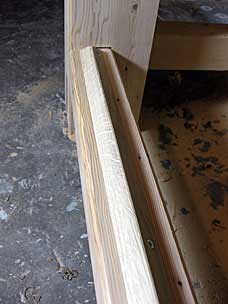

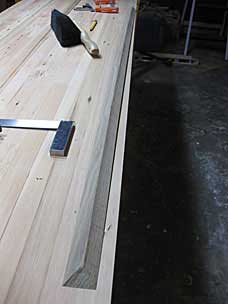

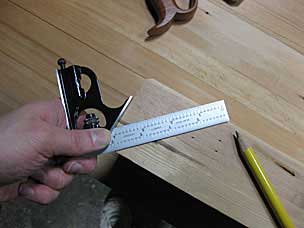

I predrilled pilot holes and countersinks for screws along the back side and attached the rail to the front stretcher.

V-shaped Channel in Sliding Vise Base

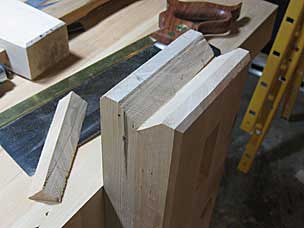

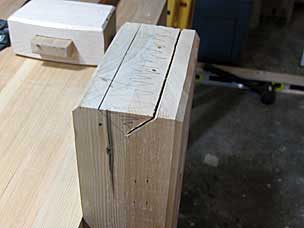

Then I laid out a v-shaped channel on the bottom of the sliding vise base.  This will ride on the rail.  I sawed it out with my crosscut tenon saw.

Upper Guide Rail

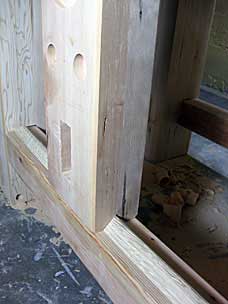

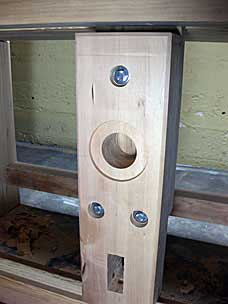

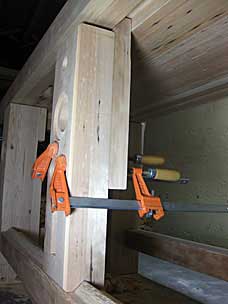

Next I adjusted the upper guide and secured it with clamps to the sliding vise base.  Then I drilled the bolt holes through and installed the 3/8″ bolts, nuts, and washers.

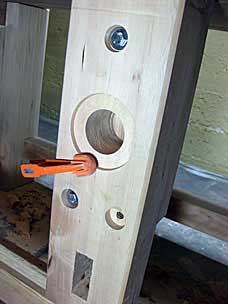

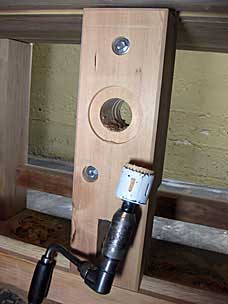

With that bolted in place, I used a hole saw to complete the hole for the vise screw.  If you’re wondering why I used a hand brace, it’s because my cordless drill doesn’t have enough torque to handle the 2″ hole saw.  I could have used the corded drill, but the brace was nearby.
