Sliding Trays – Part 7

2012.02.26

The floor boards for the middle tray are only about 1/4″ thick.  I carefully planed the shiplap rabbets, then nailed the boards onto the sides of the tray.

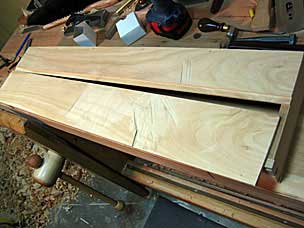

Nailing floor into middle tool chest tray

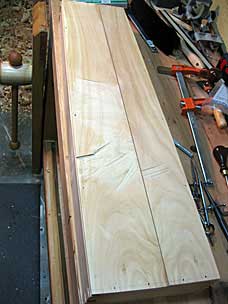

Nailing floor into middle tool chest tray

2012.03.10

I resawed a board for one of two side runners for the middle tool tray.  After resawing, I planed it down to about 1/4″.

Board prepared to resaw for middle tool chest tray runners

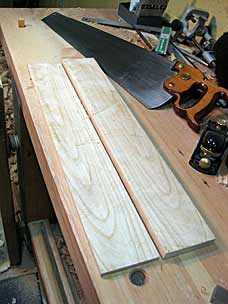

Resawn middle tool chest tray runner

I drilled countersinks and through holes and attached it with brass screws.

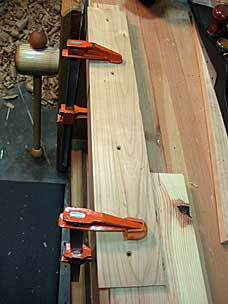

Middle tool chest tray side runner with countersinks and through holes

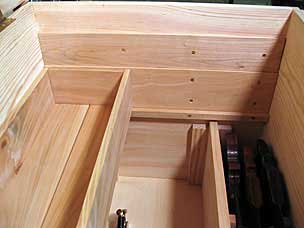

Middle tool chest tray side runner installed

2012.03.11

I resawed, planed, and drilled the other side runner and installed it.  Then I tweaked the sides of the tray with planes until it fit between the runners.

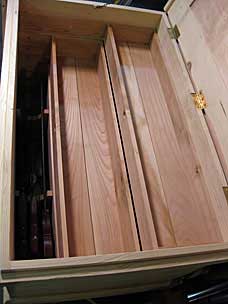

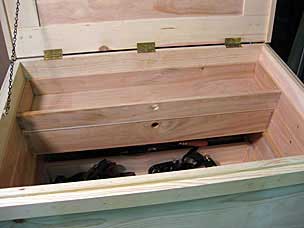

Bottom and middle tool chest trays in place
Bottom and middle tool chest trays in place
